Box Compression Tester With Statistics And Print Function Easy Operation

Name: Box Compression Tester With Statistics And Print Function Easy Operation
Brand: SKYLINE
Price: 1 USD

Place of Origin : China

Brand Name : SKYLINE

Certification : CE

Model Number : SL-E11

MOQ : 1 UNIT

Price : Negotiable

Packaging Details : Plywood case

Delivery Time : 15 working days

Payment Terms : TT , Western Union,paypal

Supply Ability : 10 pcs/week

SKYLINE : Box Compression Tester

Capacity : 10KN-50KN

Resolution : 1/300,000

Precision Of Displacement : 0.01mm

Crosshead Speed : 0.05—500mm/min (arbitrary Setting)

Supply Power : 220V, 50Hz, Single Phrase

Contact Now

Box Compression Tester

Product Introduction

It is mainly suitable for all kinds of big corrugated cartons and other material packages which anti-pressure is less than 50KN, It is used for testing the whole box anti-pressure, and stacking pressure. So it is ideal testing equipment for paper-making, packaging, quality-inspecting department and so on.

With advanced mechanical structure of a pair of threaded shafts &guide pillars and imported motor for control, the testing machine has the following salient features: Good parallelism, reliable measure precision and high speed.

The testing machine is capable of various functions for all parameters in standards, Such as parametric test, display, memory, statistics and print function, Data processing function to gain the statistical result of all parameters directly, automatic reset and fault diagnosis function and easy operation.

Technical Parameters

Capacity	10KN-50KN
Strength Precision	±0.5% of the applied load value, from 0.4% to 100% of the load cell capacity
Resolution	1/300,000
Precision of displacement	0.01mm
Platen Size	800mm*800mm (can be ordered)
Test Space	800mm (can be ordered)
Crosshead speed	0.05—500mm/min (arbitrary setting)
Weight	800 kg
Power	220V, 50Hz, single phrase

Box Compression Tester With Statistics And Print Function Easy Operation

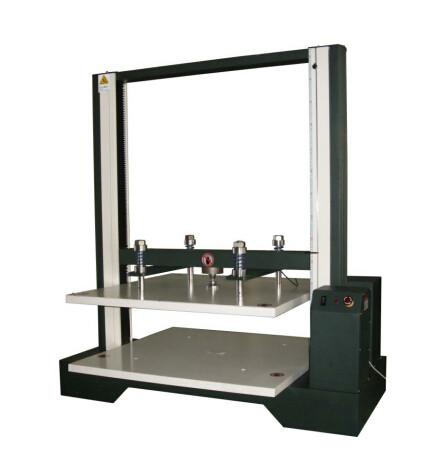

Box Compression Tester With Statistics And Print Function Easy Operation Images
